PWI-FILL Stainless Steel Box

Description

Explanation:

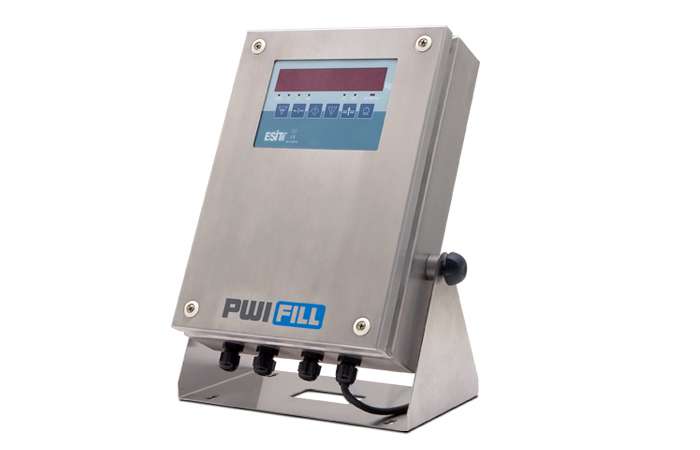

In addition to functioning as a weighing indicator, the PWI-FILL from the PWI series also serves as a controller for managing weighing instruments used in bagging, filling, and unloading applications. With its stainless steel housing, which can be mounted on a panel or used on a desk, PWI-FILL offers protection against dust, water, and impact, making it especially suitable for harsh industrial conditions, as well as in food and chemical industries.

The PWI-FILL is a self-contained unit that eliminates the need for an additional panel, as it manages all operations related to bagging, filling, and unloading through its integrated software and hardware. It can be easily operated by connecting the relay outputs on the indicator to filling control mechanisms. PWI-FILL can communicate with APIs, computers, and other systems through its industrial input and output options.

Features:

• IP65 stainless steel housing

• 20 mm 6-digit LED weight display

• Plastic membrane keypad with tactile buttons

• Tare, zero, function, and adjustment buttons

• RS232 serial output

• 4 relay settings output

Options:

• 2 internal relays

• Analog output (0-10 V)

• Analog output (4-20 mA)

• Binary output

• External relay card

• Remote display output

• RS232, RS422, RS485 outputs
